ConFlat® Isolators


Our ConFlat® Isolator is a ceramic joint which provides ideal electrical isolation from the vacuum chamber.  Our ConFlat® Isolators are offered in voltages from 6 to 24kV DC.

In addition to this standard ConFlat® Isolator, we also offer this product with welded bellows that provide vibrational absorption and alignment for applications where the Isolator is intended to be used between rigid components.

We also offer Isolators in alternative types of flanges including NW / KF, ISO-K, ISO-F and ASA elsewhere on our site. Don't forget we can also manufacture custom components for you on a rapid turnaround schedule — contact us for more details.

Select from our ConFlat® Isolator varieties below.

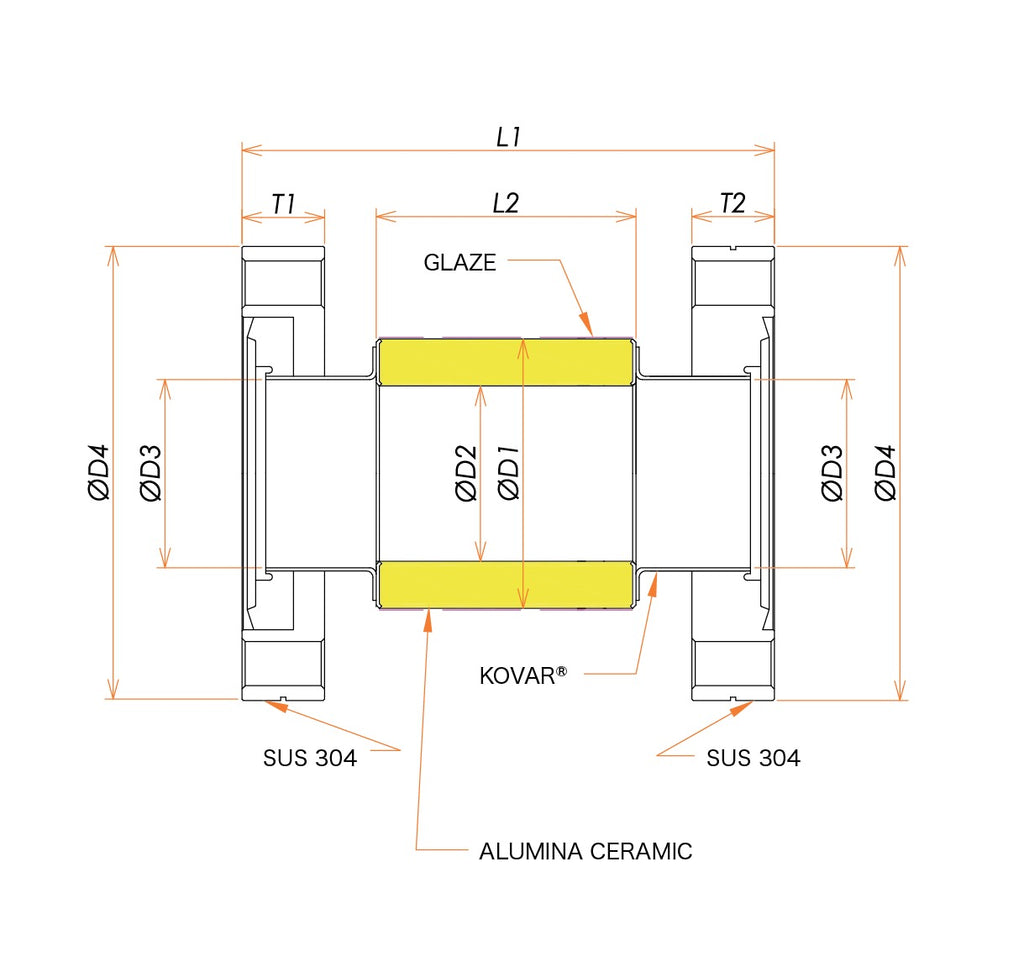

CF Mount

Flange 304 Stainless steel
Shell Kovar®
 Insulation Alumina ceramic



Voltage: V max. DC

6,000 to 24,000

Leak rate: 1.3xPa · m³s


Temperature Range: °C*

-196 to 300
